SiC-Rod-Heated, for Melting
Heated on both sides by high performance
SiC rods
Swing lid with good sealing to collar
plate to avoid heat loss over the crucible
opening
The electrically heated tilting furnaces and bale-out furnaces of the KC product lines are characterized by
a higher melting performance than achievable with wire heated melting furnaces. These furnaces are designed for
permanent operation at working temperatures.
- Tmax 1450 °C also suitable for bronze alloys, with a maximum melting of 1320 °C, depending on the crucible condition
- Heating from two sides by generously dimensioned SiC rods, temperature uniformity
- Simple exchange of individual heating elements
- Heat operation by thyistors in phase-angle mode with performance control:
The resistance of the SiC rods changes with temperature and age. Performance control ensures constant power of heating irrespective to the condition of the heating elements. - High melting performance with temperature uniformity
- Insulation constructed in multiple layers with lightweight refractory bricks on the hot face
- SiC-Crucible
- Electro-hydraulic tilting system with flame resistant HFC hydraulic fluid
- Safe, even, and precise pouring thanks to optimum pivot point in the furnace and manual throttling valve operation
- Emergency outlet for safe draining of the melt in case of crucible breakage
- Only fiber materials are used which are not classified as carcinogenic according to TRGS 905, class 1 or 2
- No exhaust gas discharge needed
- Over-temperature limiter in furnace chamber for protection against overheating. The limiter switches the heating off when the set limit temperature is reached, and only switches it back on after the temperature has fallen again
- Furnace chamber control with temperature measurement behind the crucible

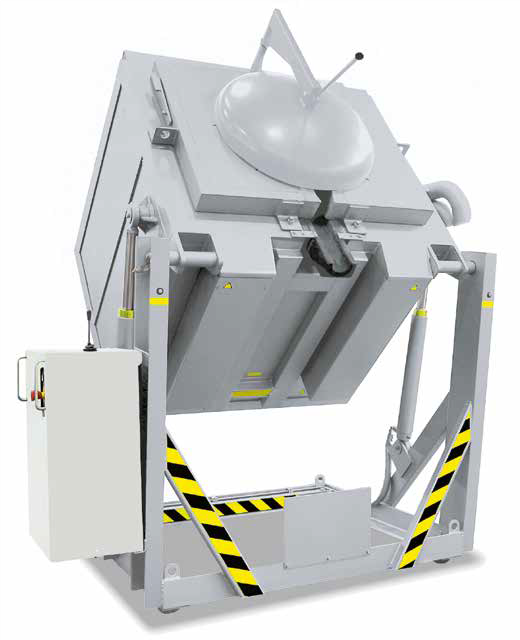

Tilting furnace KC 150/14
Switchgear with thyristors in phase angle
operation for economic power consumption
Tilting furnace KC 80/14 during casting
