ELECTRICAL MACHINE TRAINER (Model : XPO-EMT)

Facilitates easy and safe wiring by students due to use of 4mm sturdy shrouded banana patch cords and shrouded socket arrangements.
Machines should be mounted on finely painted sturdy base frame with easy machine interchangeability Use of gear coupling facilitates screwless coupling.
With due emphasis on student safety machines should operate upto 300W power levels and upto 1500 RPM, without compromising didactic use. Able to draw all graphs.
Trunnion mounted DC Integrated machine should be used as Dynamometer for loading other machines (Motors / generators both); unlike magnetic powder brake or eddy current brake which can load only coupled Motors and not generators, with facility to measure shaft power using electronic torque / speed measurement

DC Motor Coupled 3 Phase Salient Motor Trainer (Model: XPO-EMT/DC+3 Ph. SALI.)

Facilitates easy and safe wiring by students due to use of 4mm sturdy shrouded banana patch cords and shrouded socket arrangements.
Machines should be mounted on finely painted sturdy base frame with easy machine interchangeability Use of gear coupling facilitates screwless coupling.
With due emphasis on student safety machines should operate upto 300W power levels and upto 1500 RPM, without compromising didactic use. Able to draw all graphs.
Trunnion mounted DC Integrated machine should be used as Dynamometer for loading other machines (Motors / generators both); unlike magnetic powder brake or eddy current brake which can load only coupled Motors and not generators, with facility to measure shaft power using electronic torque / speed measurement

DC Motor Coupled to DC Motor (Model: XPO-EMT/DC+DC)

All machines are mounted on finely painted sturdy base frame with easy machine interchangeability Use of gear coupling facilitates screwless coupling. With due emphasis on student safety machines operate upto 300W power levels and upto 1500 RPM, without compromising didactic use Able to draw all graphs. Facilitates easy and safe wiring by students due to use of 4mm sturdy shrouded banana patch cords and shrouded socket arrangements. Trunnion mounted DC Integrated machine is used as Dynamometer for loading other machines (Motors / generators both); unlike magnetic powder brake or eddy current brake which can load only coupled Motors and not generators, with facility to measure shaft power using electronic torque / speed measurement.

Transformer Trainer Equipment (Model: XPO-TT)

2 models: 300VA300VA & 1KVA/3KVA.
Facilitates study of transformer operation, determine its equivalent circuit, use of tertiary winding to suppress harmonics etc.
Facilitates easy and safe wiring by students due to 4mm sturdy shrouded banana patch cords and shrouded socket arrangement for high voltage circuits.
Each of following standalone Electrical trainers may need a set of associated panels which are mounted in a light weight sturdy aluminium flat demo panel system.
Each panel has ABS molded plastic sturdy enclosure, and colorful screwless overlays showing circuit diagram & its connection tag numbers for easy understanding and connections.
Set of Instructor Guide & Student Workbook.

Electrical Voltage, Current Energy Watt Measurement Trainer (Model: XPO-VIEW)

Aluminum rack 4 x 3 profile sturdy flat panel (table top) system, carrying various high voltage components housed in plastic enclosures (panel) to minimize shock possibility.

Electro Technology Trainer (Model: XPO-ETT)

Should have 4mm sturdy shrouded banana patch cords and shrouded arrangements.
Powder coated Sturdy aluminums Flat panel system carrying various components housed in plastic enclosures to minimize shock possibility

Industrial Installation Trainer Equipment (Model: XPO-IIT)

Facilitates easy and safe wiring by students due to use of 4mm sturdy Shrouded banana patch cords and shrouded socket arrangements for high voltage circuits
Each panel has ABS molded plastic sturdy enclosure, and colorful screwless overlays showing circuits diagrams & its connection tag numbers for easy understanding and connection

Machine Winding Trainer (Model : XPO-MWT)

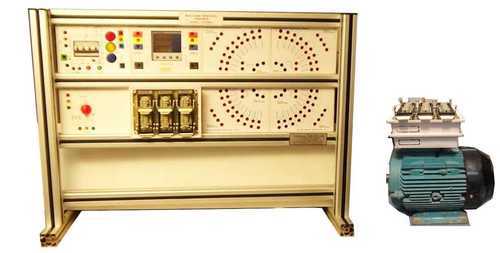

Light weight, yet sturdy tabletop, Aluminum profile (45x45) modular flat demo panel setup with 24 pin x 3 nos. heavy duty (HD) connector cable set to extend machine winding on to the flat demo panel setup from chassis mounted squirrel cage motor.
Facilitates to construct & operate motor as 3 phase 2, 4, 6, 8 and 12 pole and 2, 4 and 6 pole 1 phase motor, separate capacitors provided for aux phase.
Facilitates easy and safe wiring by students due to use of 4mm sturdy Shrouded banana patch cords and shrouded socket arrangements for high voltage circuits.
Each panel has ABS molded plastic sturdy enclosure, and colorful screwless overlays showing circuits diagrams & its connection tag numbers for easy understanding and connection
Set of Instructor Guide & Student Workbook.

3 Ph. Induction Motor Speed Control Using Cascade Method (XPO-CSD)

Easy and safe wiring by students due to 4mm sturdy shrouded banana patch cords and shrouded socket arrangement for high voltage circuits.
Aluminum profile flat demo panel system (table top), carrying various high voltage components housed in plastic enclosures (panel) to minimize shock possibility.
Facilitates easy learning about slip power recovery by cascading two torque motors.
Each panel has ABS molded plastic sturdy enclosure, and colorful screw less overlays showing circuit diagram & its connection tag numbers for easy understanding and connections.
Set of Instructor Guide & Student Workbook.
CNC manufactured chasis mounted coupled motor set 3 Ph. AC.

Dissectible Machine Trainer (XPO-DMT)

Light weight, yet sturdy tabletop, Aluminum profile modular flat demo panel rack(4x2) system, carrying various high volt., components housed in plastic enclosure(panel) to minimize shock possibilities.No hidden parts.
Offers standard 0.5 Hp working models of 3 phase AC slip ring m/c & DC integrated m/c along with Squirrel cage rotor & accessory in completely knocked down form, without fans and bearing end plates, which are replaced by plummer blocks
Both the motors are individually mounted on the table top chassis & can be coupled together
Students can disassemble them and reassemble these using accessories viz. screw driver, nut driver, spanners, shims, allen keys
Stator supplied with end plates removed so that the internal construction is visible. Brush plate holder is used for holding the brushes in position.
The speed of the motor can be controlled thus regulated with SCR actuator panel, & can be measured with a speed sensor arrangement
Facilitates easy and safe wiring by students due to use of 4mm sturdy Shrouded banana patch cords and shrouded socket arrangements for high voltage circuits. Transparent acrylic cover for the safety purpose
1 phase Xmer, 0.5 Hp in dissectible form
Set of Instructor Guide & Student Workbook.

Electrical Machine Trainer (Model: XPO-EMT)

Facilitates easy and safe wiring by students due to use of 4mm sturdy shrouded banana patch cords and shrouded socket arrangements.
Machines should be mounted on finely painted sturdy base frame with easy machine interchangeability Use of gear coupling facilitates screwless coupling.
With due emphasis on student safety machines should operate upto 300W power levels and upto 1500 RPM, without compromising didactic use. Able to draw all graphs.
Trunnion mounted DC Integrated machine should be used as Dynamometer for loading other machines (Motors / generators both); unlike magnetic powder brake or eddy current brake which can load only coupled Motors and not generators, with facility to measure shaft power using electronic torque / speed measurement
