Gas-Fired, for Melting and Holding

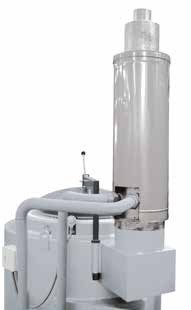

Heat exchanger in the exhaust gas duct
The fuel-heated crucible furnaces in the TBR product line fitted with the side exhaust gas discharge provide for
optimum energy utilization combined with highest quality melt. Fitted with a burner system including heat-recovery
system using a recuperative burner, the energy efficiency of ordinary fuel-heated melting furnaces is significantly
improved.
Depending on utilization the hot exhaust gases from the crucible furnace are guided through a heat exchanger in
order to preheat the combustion air for the burner. The system provides for energy savings of up to 25 % compared
to ordinary fuel-heated furnaces with side exhaust gas discharge. The higher purchase costs are amortized within a
short time.
Emergency outlet for safe melt discharge
in case of crucible break
- Tmax 1100 °C for aluminum and zinc alloys
- Two-stage output control: High load for melting operation, low load for holding operation with automatic switching between both modes
- Modern burner system with optimized flame guide: High efficiency provided by over-pressure operation to keep out entrained air
- Heat exchanger in the exhaust gas duct to preheat the combustion air for the burners
- Energy savings of up to 25 % in comparison to other fuel-heated melting furnaces featuring side-wall exhaust gas vents
- Gas system consisting of pressure regulator, gas filter, manometer and solenoid valves
- Safe flame monitoring
- Burner technology with easy-to-service design, compliant with DIN 746, Part 2
- Designed for natural gas or liquid natural gas with 8.8 kWh/m3 - 25.9 kWh/m3
- Required min. gas pressure with full load: 70 mbar
- Operation with other fuels and/or with another gas input pressure possible
- High melting performance powered by high-performance burners and high-quality insulation
- Multi-layered insulation with lightweight refractory bricks provide the furnace chamber lining

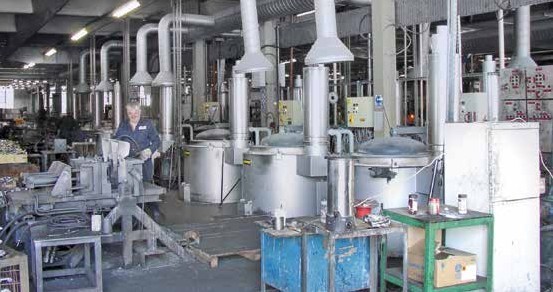

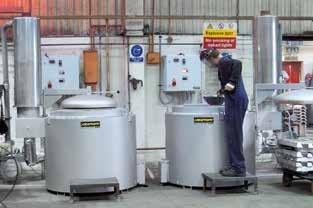

Production with 16 crucible furnaces TBR 100/11 and 2 crucible furnaces TBR 180/11
| Model | Tmax furnace | Tmax melt bath | Curcible | Capasity | Burner output | Melting performance | Consumption melting | Consumption Holdinglid closed | ||
|---|---|---|---|---|---|---|---|---|---|---|
| °C | °C | kg Al | kg Cu | kW | kg/h Al | kg/h Cu | kwh/kg Al | kWh/h | ||
| TBR 80/11 | 1100 | 950 | BU 200 | 200 | 650 | 180 | 140¹ | - | 1.0 - 1.1 | 8.0 |
| TBR 100/11 | 1100 | 950 | BU 250 | 250 | 830 | 180 | 140¹ | - | 1.0 - 1.1 | 8.8 |
| TBR 110/11 | 1100 | 950 | BU 300 | 300 | 1000 | 210 | 150¹ | - | 1.0 - 1.1 | 10.4 |
| TBR 150/11 | 1100 | 950 | BU 350 | 350 | 1150 | 240 | 220¹ | - | 1.0 - 1.1 | 12.0 |
| TBR 180/11 | 1100 | 950 | BU 500 | 500 | 1650 | 300 | 270¹ | - | 1.0 - 1.1 | 13.6 |
| TBR 240/11 | 1100 | 950 | BU 600 | 600 | 2000 | 320 | 330¹ | - | 1.0 - 1.1 | 15.2 |
| TBR 360/11 | 1100 | 950 | BN 800 | 800 | - | 320 | 350¹ | - | 1.0 - 1.1 | 16.0 |
