Tilting Furnaces K

Electrically Heated, for Melting and Holding

Tilting Furnaces K

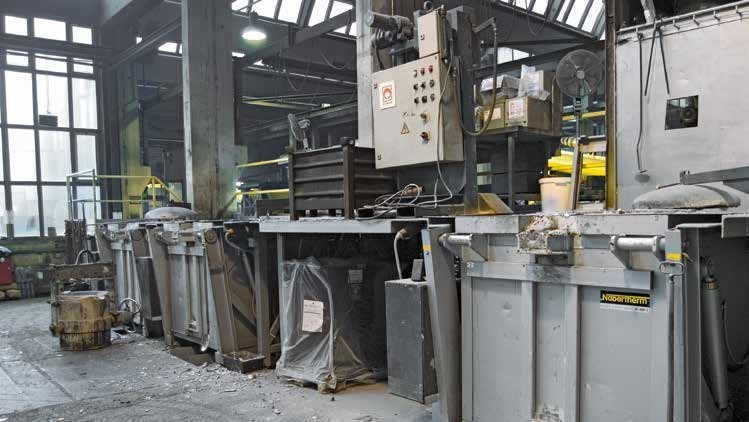

Tilting furnace K 150/12 and bale-out furnace T 180/11 as premelting and holding system

Tilting Furnaces K
Charging of transport ladle with tilting furnace K 360/12

Tilting Furnaces K
Tilting furnace K 40/13 with extended spout (sculpture foundry Knaak)

The electrically heated tilting furnaces are characterized by high melting performance with very temperature uniformity in the melt. Aluminum and brass can be melted in the 1200 °C version. The 1300 °C version can also be used to melt bronze alloys.

  • K ../12 with Tmax of 1200 °C also suitable for aluminum or brass, with a maximum melt bath temperature, depending on the condition of the crucible, of 1050 °C
  • K ../13 with Tmax of 1300 °C also suitable for bronze alloys or brass, with a maximum melt bath temperature of 1150 °C
  • Heating from three sides using electric heating elements, radiating freely on support tubes, simple exchange of individual heating elements
  • Multi-step wiring of the heating elements for furnaces with more than 50 kW electrical rating
  • Heating of furnaces up to 60 kW power rating controlled using long-lasting, noiseless solid-state-relays
  • Heating of furnaces beyond 60 kW with contactors
  • High melting performance with temperature uniformity in the melt
  • Insulation constructed in multiple layers with lightweight refractory bricks on the hot face
  • Incl. crucible
  • Electro-hydraulic tilting system with flame resistant HFC hydraulic fluid
  • Safe, even, and precise pouring thanks to optimum pivot point in the furnace and manual throttling valve operation
  • Emergency outlet for safe draining of the melt in case of crucible breakage
  • Only fiber materials are used which are not classified as carcinogenic according to TRGS 905, class 1 or 2
  • No exhaust gas discharge needed
  • Integrated safety system which continues to operate the furnace at reduced power in case of malfunction in the bath thermocouple, in order to prevent the freezing of the melt
  • Over-temperature limiter in furnace chamber for protection against overheating. The limiter switches the heating off when the set limit temperature is reached, and only switches it back on after the temperature has fallen again
  • Furnace chamber control with temperature measurement behind the crucible, recommended for melting
  • Defined application within the constraints of the operating instructions

Tilting Furnaces K
3 tilting furnaces K 300/12 with work platform for melting of aluminum

Model Tmax furnace Tmax melt bath Curcible Capasity Heating power Melting performance3 Consumption Holding Lid closed/open Outer dimensions4 in mm Weight in
°C °C kg Al kg Cu kW kg/h Al kg/h Cu kWh/h W D H kg
K 10/12 1200 1050 A 70 20 70 16 32¹ 47 3/7¹ 1890 1240 1390 950
K 20/12 1200 1050 A 150 45 150 20 42¹ 63 3/7¹ 1890 1400 1410 1400
K 40/12 1200 1050 A 300 90 300 26 58¹ 84 3/7¹ 2000 1450 1490 1550
K 80/121200 1050 TP 287 180 550 50 126¹ 190 4/10¹ 2050 1520 1580 1750
K 150/12 1200 1050 TP 412 330 970 60 147¹ 220 5/12¹ 2120 1600 1860 2350
K 180/12 1200 1050 TP 412H 370 1200 60 160¹ 240 5/12¹ 2120 1600 1860 2450
K 240/12 1200 1050 TP 587 570 - 80 180¹ - 8/17¹ 2260 1760 1860 2800
K 300/12 1200 1050 TP 587H 650 - 80 210¹ - 9/18¹ 2260 1760 1960 3200
K 360/12 1200 1050 BUK 800 750 - 100 260¹ - 11/20¹ 2370 1810 1950 3500
K 400/12 1200 1050 TBN 1100 1050 - 126 295¹ - 12/22¹ 2370 1930 2100 3700
K 10/13 1300 1150 A 70 20 70 16 32¹ 47 5/8 1890 1240 1440 1000
K 20/13 1300 1150 A 150 45 150 20 42¹ 63 5/8 1890 1400 1460 1300
K 40/13 1300 1150 A 300 90 300 26 58¹ 84 5/8 2000 1450 1540 1650
K 80/13 1300 1150 TP 287 180 550 50 126¹ 1902 6/112 2050 1520 1580 1950
